BC Shackle SS

$15.00

Quantity

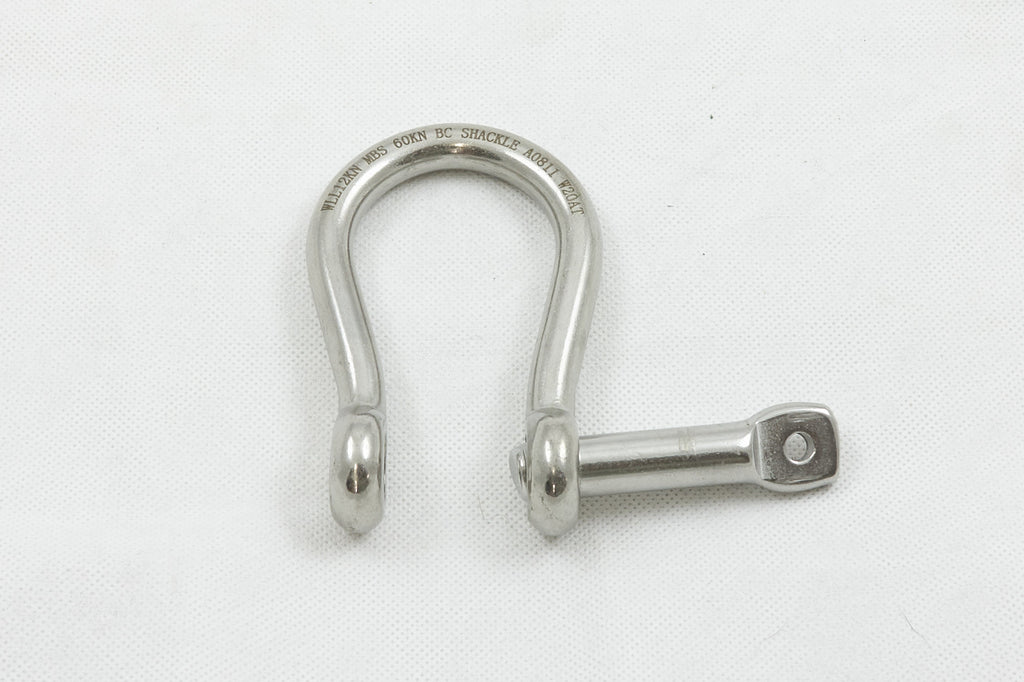

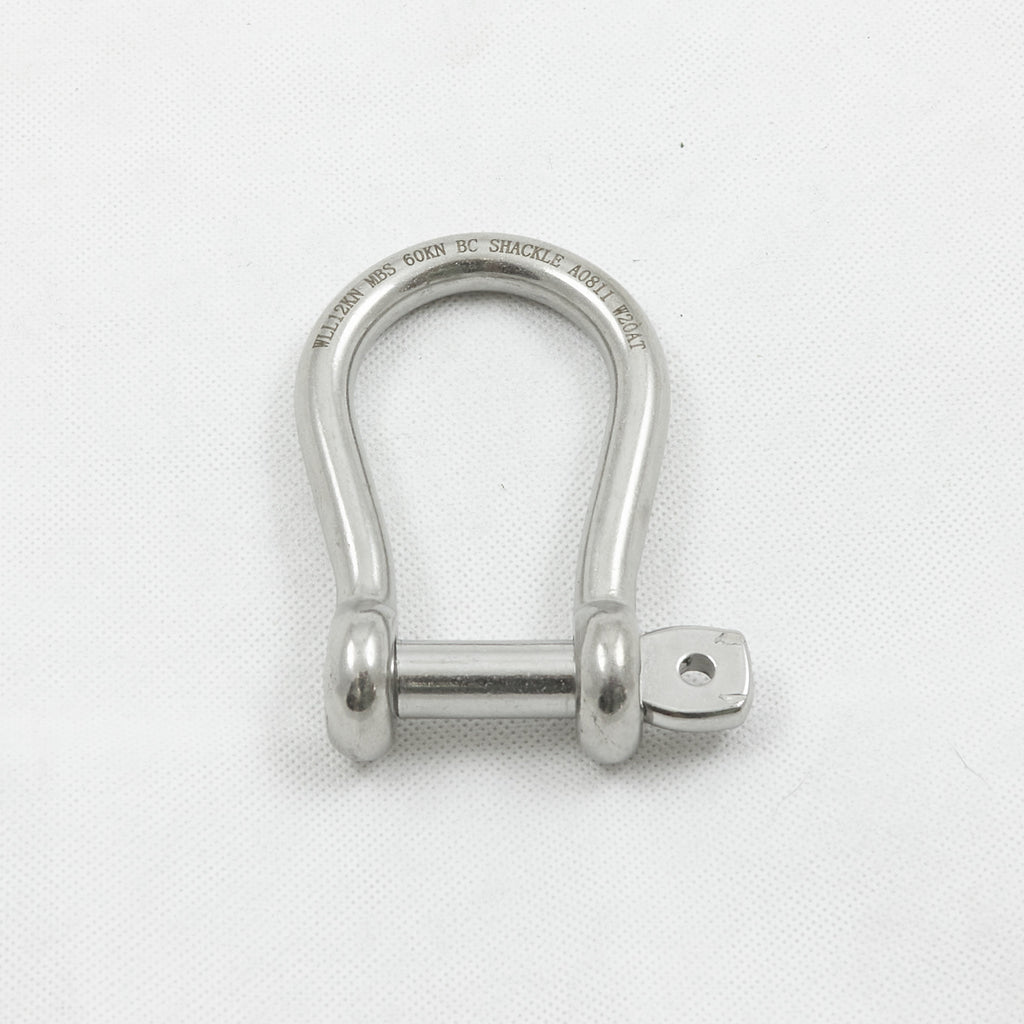

BC Shackle SS

Introducing the all new BC Shackle Stainless Steel (SS). A smooth construction shackle forged from high corrosion resistant 316 stainless steel. This is the ultimate shackle for slackline rigging.

The smooth construction of the shackle ensures no snags or burrs are present on the body, nor the pin. This makes rigging smooth and handling a breeze. Not to mention, there is a captive pin, which prevents the pin from coming out of the shackle. So...NO MORE LOST PINS!!

With a jaw width of slightly larger than 1" (26.9mm) and a long body, this shackle can accommodate just about any rigging scenario you could come across in the slackline world.

With an MBS of 60 kN (13,488 lbf) and a WLL of 12 kN (2,698 lbf), you can feel safe using this shackle on even the most demanding slacklines.

Tech Specs

Dimenions

a - Stock Diameter – 9.6 mm (0.38 inches)

b - Pin Diameter – 11.7 mm (0.46 inches)

c - Eye Diameter – 23.5 mm (0.93 inches)

d - Eye Width – 10.2 mm (0.40 inches)

e - Jaw Width – 27.2 mm (1.07 inches)

f - Inside Length – 64.8 mm (2.55 inches)

g - Inside Width – 40.5 mm (1.59 inches)

h - Outside Length – 92.1 mm (3.63 inches)

i - Bolt Length – 63.5 mm (2.50 inches)

j - Outside Width – 59.7 mm (2.35 inches)

Weight – 178 g (6.3 oz.)

Strength

MBS – 60.0 kN (13,488 lbf)

WLL – 12.0 kN (2,698 lbf)

Material

Raw Material – 316 Stainless Steel

Manufacture Method – Drop Forged
